  • RAFTER mix LED recessed

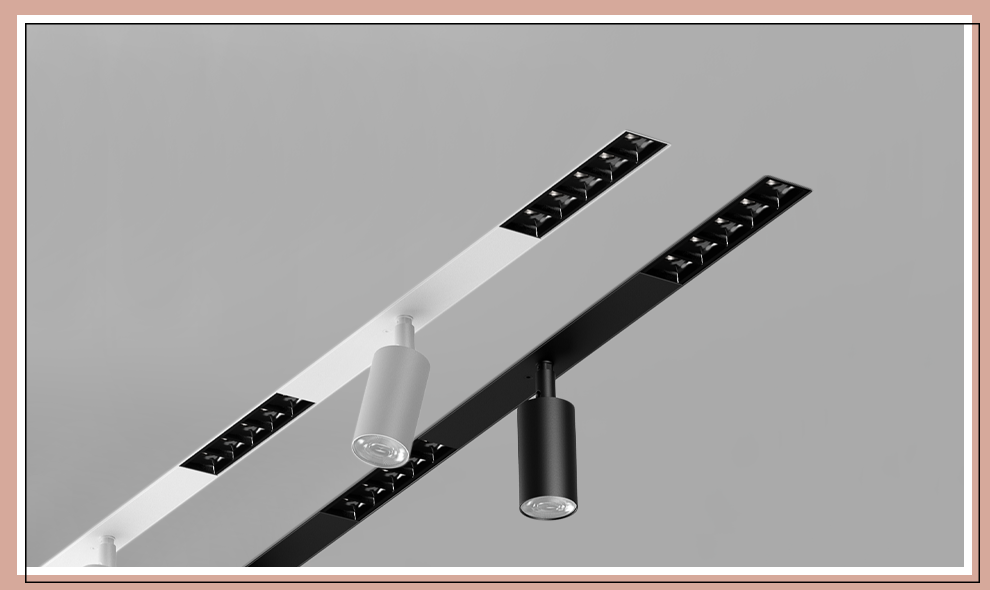

RAFTER mix LED recessed

RAFTER mix LED wpuszczany

Light source: LED, integrated
Available colour temperatures: 2700K/3000K/4000K

Dimming options: DALI, switchDIM
Integrated light source

Gear included

  • Input voltage - 230V.
  • CRI coefficient - CRI>90.
  • IEC protection class - 1.
  • The minimum distance from the illuminated object or surface - 0.2 m.
  • IP rating - IP20.
  • Luminaire mounting point: ceiling.
  • Illumination direction: mixed
  • Optionally dimmable luminaire.
  • LED integrated
  • Light source in the third MacAdam elipse range.
  • RAFTER mix LED wpuszczany

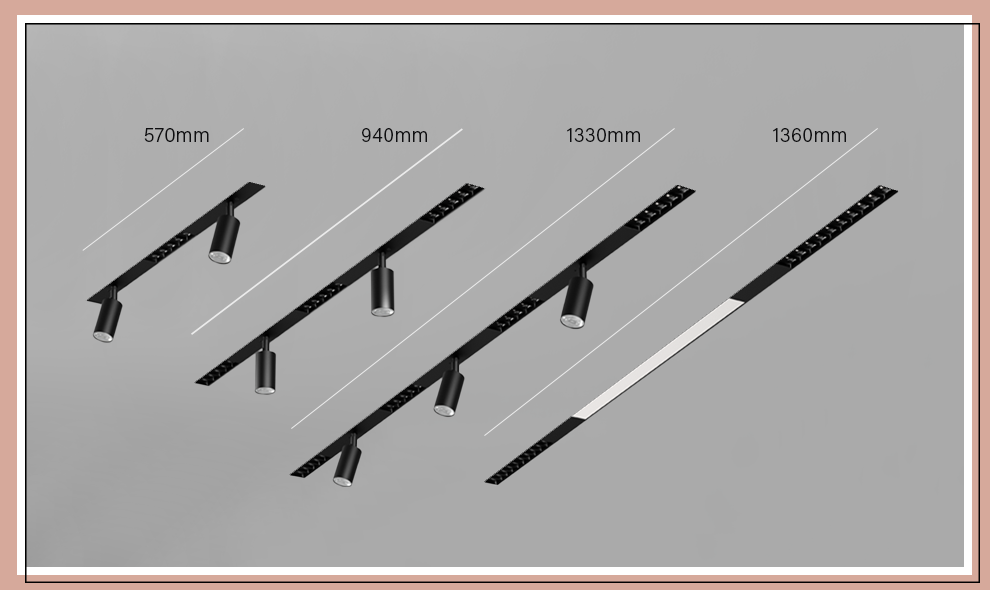

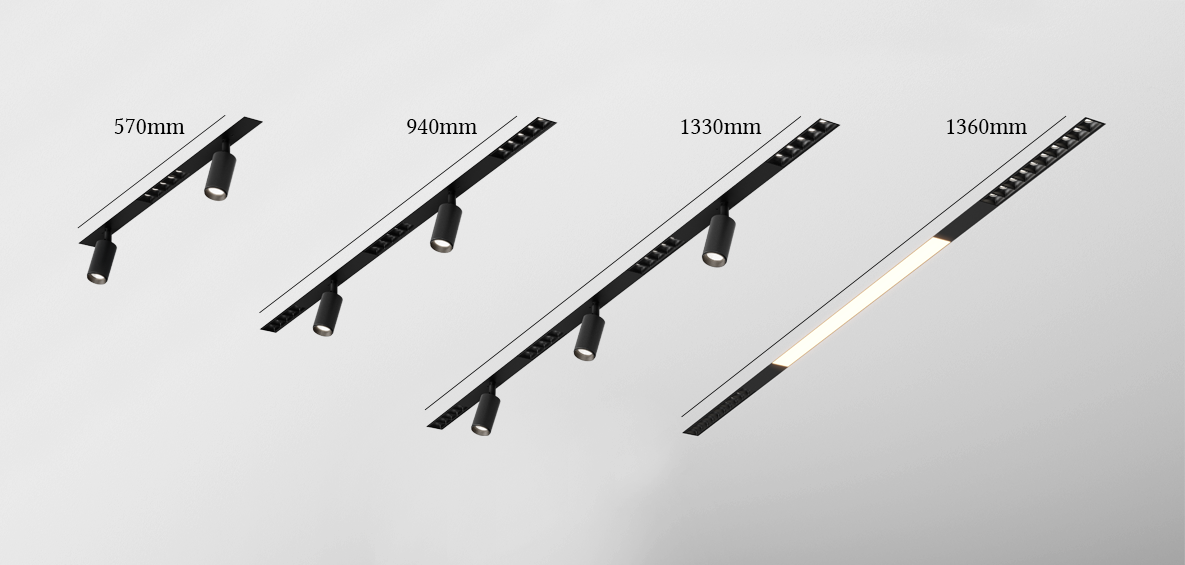

Installation dimensions:
37×1339mm
37×1367mm
37×369mm
37×939mm
Beam angle: 37° / 50°

FAMILY:

  • RAFTER LED flattrack
  • RAFTER points LED flattrack
  • RAFTER points LED spot
  • RAFTER points SQ LED trim recessed
  • RAFTER LED high multitrack
  • RAFTER LED multitrack
  • RAFTER LED recessed
  • RAFTER LED surface
  • RAFTER LED suspended
  • RAFTER LED track
  • RAFTER LED wall
  • RAFTER mix LED surface
  • RAFTER mix system LED recessed
  • RAFTER mix system LED surface
  • RAFTER mix system LED suspended
  • RAFTER points LED G/K spot
  • RAFTER points LED high multitrack
  • RAFTER points LED microtrack
  • RAFTER points LED multitrack
  • RAFTER points LED recessed
  • RAFTER points LED section recessed
  • RAFTER points LED section surface
  • RAFTER points LED section suspended
  • RAFTER points LED surface
  • RAFTER points LED track
  • RAFTER system LED recessed
  • RAFTER system LED surface
  • RAFTER system LED suspended

AVAILABLE VERSIONS:

M927medium power2700KCRI>90
M930medium power3000KCRI>90
M940medium power4000KCRI>90
NET PRICE:

contact us for current prices
Warranty: 5 years

PRODUCT CONFIGURATOR:

selected product variants:catalogue number
RAFTER mix 57 LED M927 37° recessed black37953-M927-FB-00-12
RAFTER mix 57 LED M927 37° recessed white+black37953-M927-FB-00-13
RAFTER mix 57 LED M927 37° recessed black+white37953-M927-FW-00-12
RAFTER mix 57 LED M927 37° recessed white37953-M927-FW-00-13
RAFTER mix 57 LED M927 50° recessed black37953-M927-WB-00-12
RAFTER mix 57 LED M927 50° recessed white+black37953-M927-WB-00-13
RAFTER mix 57 LED M927 50° recessed black+white37953-M927-WW-00-12
RAFTER mix 57 LED M927 50° recessed white37953-M927-WW-00-13
RAFTER mix 57 LED M930 37° recessed black37953-M930-FB-00-12
RAFTER mix 57 LED M930 37° recessed white+black37953-M930-FB-00-13
RAFTER mix 57 LED M930 37° recessed black+white37953-M930-FW-00-12
RAFTER mix 57 LED M930 37° recessed white37953-M930-FW-00-13
RAFTER mix 57 LED M930 50° recessed black37953-M930-WB-00-12
RAFTER mix 57 LED M930 50° recessed white+black37953-M930-WB-00-13
RAFTER mix 57 LED M930 50° recessed black+white37953-M930-WW-00-12
RAFTER mix 57 LED M930 50° recessed white37953-M930-WW-00-13
RAFTER mix 57 LED M940 37° recessed black37953-M940-FB-00-12
RAFTER mix 57 LED M940 37° recessed white+black37953-M940-FB-00-13
RAFTER mix 57 LED M940 37° recessed black+white37953-M940-FW-00-12
RAFTER mix 57 LED M940 37° recessed white37953-M940-FW-00-13
RAFTER mix 57 LED M940 50° recessed black37953-M940-WB-00-12
RAFTER mix 57 LED M940 50° recessed white+black37953-M940-WB-00-13
RAFTER mix 57 LED M940 50° recessed black+white37953-M940-WW-00-12
RAFTER mix 57 LED M940 50° recessed white37953-M940-WW-00-13
RAFTER mix 94 LED M927 37° recessed black37954-M927-FB-00-12
RAFTER mix 94 LED M927 37° recessed white+black37954-M927-FB-00-13
RAFTER mix 94 LED M927 37° DALI recessed black37954-M927-FB-DA-12
RAFTER mix 94 LED M927 37° DALI recessed white+black37954-M927-FB-DA-13
RAFTER mix 94 LED M927 37° SwitchDim recessed black37954-M927-FB-SW-12
RAFTER mix 94 LED M927 37° SwitchDim recessed white+black37954-M927-FB-SW-13
RAFTER mix 94 LED M927 37° recessed black+white37954-M927-FW-00-12
RAFTER mix 94 LED M927 37° recessed white37954-M927-FW-00-13
RAFTER mix 94 LED M927 37° DALI recessed black+white37954-M927-FW-DA-12
RAFTER mix 94 LED M927 37° DALI recessed white37954-M927-FW-DA-13
RAFTER mix 94 LED M927 37° SwitchDim recessed black+white37954-M927-FW-SW-12
RAFTER mix 94 LED M927 37° SwitchDim recessed white37954-M927-FW-SW-13
RAFTER mix 94 LED M927 50° recessed black37954-M927-WB-00-12
RAFTER mix 94 LED M927 50° recessed white+black37954-M927-WB-00-13
RAFTER mix 94 LED M927 50° DALI recessed black37954-M927-WB-DA-12
RAFTER mix 94 LED M927 50° DALI recessed white+black37954-M927-WB-DA-13
RAFTER mix 94 LED M927 50° SwitchDim recessed black37954-M927-WB-SW-12
RAFTER mix 94 LED M927 50° SwitchDim recessed white+black37954-M927-WB-SW-13
RAFTER mix 94 LED M927 50° recessed black+white37954-M927-WW-00-12
RAFTER mix 94 LED M927 50° recessed white37954-M927-WW-00-13
RAFTER mix 94 LED M927 50° DALI recessed black+white37954-M927-WW-DA-12
RAFTER mix 94 LED M927 50° DALI recessed white37954-M927-WW-DA-13
RAFTER mix 94 LED M927 50° SwitchDim recessed black+white37954-M927-WW-SW-12
RAFTER mix 94 LED M927 50° SwitchDim recessed white37954-M927-WW-SW-13
RAFTER mix 94 LED M930 37° recessed black37954-M930-FB-00-12
RAFTER mix 94 LED M930 37° recessed white+black37954-M930-FB-00-13
RAFTER mix 94 LED M930 37° DALI recessed black37954-M930-FB-DA-12
RAFTER mix 94 LED M930 37° DALI recessed white+black37954-M930-FB-DA-13
RAFTER mix 94 LED M930 37° SwitchDim recessed black37954-M930-FB-SW-12
RAFTER mix 94 LED M930 37° SwitchDim recessed white+black37954-M930-FB-SW-13
RAFTER mix 94 LED M930 37° recessed black+white37954-M930-FW-00-12
RAFTER mix 94 LED M930 37° recessed white37954-M930-FW-00-13
RAFTER mix 94 LED M930 37° DALI recessed black+white37954-M930-FW-DA-12
RAFTER mix 94 LED M930 37° DALI recessed white37954-M930-FW-DA-13
RAFTER mix 94 LED M930 37° SwitchDim recessed black+white37954-M930-FW-SW-12
RAFTER mix 94 LED M930 37° SwitchDim recessed white37954-M930-FW-SW-13
RAFTER mix 94 LED M930 50° recessed black37954-M930-WB-00-12
RAFTER mix 94 LED M930 50° recessed white+black37954-M930-WB-00-13
RAFTER mix 94 LED M930 50° DALI recessed black37954-M930-WB-DA-12
RAFTER mix 94 LED M930 50° DALI recessed white+black37954-M930-WB-DA-13
RAFTER mix 94 LED M930 50° SwitchDim recessed black37954-M930-WB-SW-12
RAFTER mix 94 LED M930 50° SwitchDim recessed white+black37954-M930-WB-SW-13
RAFTER mix 94 LED M930 50° recessed black+white37954-M930-WW-00-12
RAFTER mix 94 LED M930 50° recessed white37954-M930-WW-00-13
RAFTER mix 94 LED M930 50° DALI recessed black+white37954-M930-WW-DA-12
RAFTER mix 94 LED M930 50° DALI recessed white37954-M930-WW-DA-13
RAFTER mix 94 LED M930 50° SwitchDim recessed black+white37954-M930-WW-SW-12
RAFTER mix 94 LED M930 50° SwitchDim recessed white37954-M930-WW-SW-13
RAFTER mix 94 LED M940 37° recessed black37954-M940-FB-00-12
RAFTER mix 94 LED M940 37° recessed white+black37954-M940-FB-00-13
RAFTER mix 94 LED M940 37° DALI recessed black37954-M940-FB-DA-12
RAFTER mix 94 LED M940 37° DALI recessed white+black37954-M940-FB-DA-13
RAFTER mix 94 LED M940 37° SwitchDim recessed black37954-M940-FB-SW-12
RAFTER mix 94 LED M940 37° SwitchDim recessed white+black37954-M940-FB-SW-13
RAFTER mix 94 LED M940 37° recessed black+white37954-M940-FW-00-12
RAFTER mix 94 LED M940 37° recessed white37954-M940-FW-00-13
RAFTER mix 94 LED M940 37° DALI recessed black+white37954-M940-FW-DA-12
RAFTER mix 94 LED M940 37° DALI recessed white37954-M940-FW-DA-13
RAFTER mix 94 LED M940 37° SwitchDim recessed black+white37954-M940-FW-SW-12
RAFTER mix 94 LED M940 37° SwitchDim recessed white37954-M940-FW-SW-13
RAFTER mix 94 LED M940 50° recessed black37954-M940-WB-00-12
RAFTER mix 94 LED M940 50° recessed white+black37954-M940-WB-00-13
RAFTER mix 94 LED M940 50° DALI recessed black37954-M940-WB-DA-12
RAFTER mix 94 LED M940 50° DALI recessed white+black37954-M940-WB-DA-13
RAFTER mix 94 LED M940 50° SwitchDim recessed black37954-M940-WB-SW-12
RAFTER mix 94 LED M940 50° SwitchDim recessed white+black37954-M940-WB-SW-13
RAFTER mix 94 LED M940 50° recessed black+white37954-M940-WW-00-12
RAFTER mix 94 LED M940 50° recessed white37954-M940-WW-00-13
RAFTER mix 94 LED M940 50° DALI recessed black+white37954-M940-WW-DA-12
RAFTER mix 94 LED M940 50° DALI recessed white37954-M940-WW-DA-13
RAFTER mix 94 LED M940 50° SwitchDim recessed black+white37954-M940-WW-SW-12
RAFTER mix 94 LED M940 50° SwitchDim recessed white37954-M940-WW-SW-13
RAFTER mix 133 LED M927 37° recessed black37955-M927-FB-00-12
RAFTER mix 133 LED M927 37° recessed white+black37955-M927-FB-00-13
RAFTER mix 133 LED M927 37° DALI recessed black37955-M927-FB-DA-12
RAFTER mix 133 LED M927 37° DALI recessed white+black37955-M927-FB-DA-13
RAFTER mix 133 LED M927 37° SwitchDim recessed black37955-M927-FB-SW-12
RAFTER mix 133 LED M927 37° SwitchDim recessed white+black37955-M927-FB-SW-13
RAFTER mix 133 LED M927 37° recessed black+white37955-M927-FW-00-12
RAFTER mix 133 LED M927 37° recessed white37955-M927-FW-00-13
RAFTER mix 133 LED M927 37° DALI recessed black+white37955-M927-FW-DA-12
RAFTER mix 133 LED M927 37° DALI recessed white37955-M927-FW-DA-13
RAFTER mix 133 LED M927 37° SwitchDim recessed black+white37955-M927-FW-SW-12
RAFTER mix 133 LED M927 37° SwitchDim recessed white37955-M927-FW-SW-13
RAFTER mix 133 LED M927 50° recessed black37955-M927-WB-00-12
RAFTER mix 133 LED M927 50° recessed white+black37955-M927-WB-00-13
RAFTER mix 133 LED M927 50° DALI recessed black37955-M927-WB-DA-12
RAFTER mix 133 LED M927 50° DALI recessed white+black37955-M927-WB-DA-13
RAFTER mix 133 LED M927 50° SwitchDim recessed black37955-M927-WB-SW-12
RAFTER mix 133 LED M927 50° SwitchDim recessed white+black37955-M927-WB-SW-13
RAFTER mix 133 LED M927 50° recessed black+white37955-M927-WW-00-12
RAFTER mix 133 LED M927 50° recessed white37955-M927-WW-00-13
RAFTER mix 133 LED M927 50° DALI recessed black+white37955-M927-WW-DA-12
RAFTER mix 133 LED M927 50° DALI recessed white37955-M927-WW-DA-13
RAFTER mix 133 LED M927 50° SwitchDim recessed black+white37955-M927-WW-SW-12
RAFTER mix 133 LED M927 50° SwitchDim recessed white37955-M927-WW-SW-13
RAFTER mix 133 LED M930 37° recessed black37955-M930-FB-00-12
RAFTER mix 133 LED M930 37° recessed white+black37955-M930-FB-00-13
RAFTER mix 133 LED M930 37° DALI recessed black37955-M930-FB-DA-12
RAFTER mix 133 LED M930 37° DALI recessed white+black37955-M930-FB-DA-13
RAFTER mix 133 LED M930 37° SwitchDim recessed black37955-M930-FB-SW-12
RAFTER mix 133 LED M930 37° SwitchDim recessed white+black37955-M930-FB-SW-13
RAFTER mix 133 LED M930 37° recessed black+white37955-M930-FW-00-12
RAFTER mix 133 LED M930 37° recessed white37955-M930-FW-00-13
RAFTER mix 133 LED M930 37° DALI recessed black+white37955-M930-FW-DA-12
RAFTER mix 133 LED M930 37° DALI recessed white37955-M930-FW-DA-13
RAFTER mix 133 LED M930 37° SwitchDim recessed black+white37955-M930-FW-SW-12
RAFTER mix 133 LED M930 37° SwitchDim recessed white37955-M930-FW-SW-13
RAFTER mix 133 LED M930 50° recessed black37955-M930-WB-00-12
RAFTER mix 133 LED M930 50° recessed white+black37955-M930-WB-00-13
RAFTER mix 133 LED M930 50° DALI recessed black37955-M930-WB-DA-12
RAFTER mix 133 LED M930 50° DALI recessed white+black37955-M930-WB-DA-13
RAFTER mix 133 LED M930 50° SwitchDim recessed black37955-M930-WB-SW-12
RAFTER mix 133 LED M930 50° SwitchDim recessed white+black37955-M930-WB-SW-13
RAFTER mix 133 LED M930 50° recessed black+white37955-M930-WW-00-12
RAFTER mix 133 LED M930 50° recessed white37955-M930-WW-00-13
RAFTER mix 133 LED M930 50° DALI recessed black+white37955-M930-WW-DA-12
RAFTER mix 133 LED M930 50° DALI recessed white37955-M930-WW-DA-13
RAFTER mix 133 LED M930 50° SwitchDim recessed black+white37955-M930-WW-SW-12
RAFTER mix 133 LED M930 50° SwitchDim recessed white37955-M930-WW-SW-13
RAFTER mix 133 LED M940 37° recessed black37955-M940-FB-00-12
RAFTER mix 133 LED M940 37° recessed white+black37955-M940-FB-00-13
RAFTER mix 133 LED M940 37° DALI recessed black37955-M940-FB-DA-12
RAFTER mix 133 LED M940 37° DALI recessed white+black37955-M940-FB-DA-13
RAFTER mix 133 LED M940 37° SwitchDim recessed black37955-M940-FB-SW-12
RAFTER mix 133 LED M940 37° SwitchDim recessed white+black37955-M940-FB-SW-13
RAFTER mix 133 LED M940 37° recessed black+white37955-M940-FW-00-12
RAFTER mix 133 LED M940 37° recessed white37955-M940-FW-00-13
RAFTER mix 133 LED M940 37° DALI recessed black+white37955-M940-FW-DA-12
RAFTER mix 133 LED M940 37° DALI recessed white37955-M940-FW-DA-13
RAFTER mix 133 LED M940 37° SwitchDim recessed black+white37955-M940-FW-SW-12
RAFTER mix 133 LED M940 37° SwitchDim recessed white37955-M940-FW-SW-13
RAFTER mix 133 LED M940 50° recessed black37955-M940-WB-00-12
RAFTER mix 133 LED M940 50° recessed white+black37955-M940-WB-00-13
RAFTER mix 133 LED M940 50° DALI recessed black37955-M940-WB-DA-12
RAFTER mix 133 LED M940 50° DALI recessed white+black37955-M940-WB-DA-13
RAFTER mix 133 LED M940 50° SwitchDim recessed black37955-M940-WB-SW-12
RAFTER mix 133 LED M940 50° SwitchDim recessed white+black37955-M940-WB-SW-13
RAFTER mix 133 LED M940 50° recessed black+white37955-M940-WW-00-12
RAFTER mix 133 LED M940 50° recessed white37955-M940-WW-00-13
RAFTER mix 133 LED M940 50° DALI recessed black+white37955-M940-WW-DA-12
RAFTER mix 133 LED M940 50° DALI recessed white37955-M940-WW-DA-13
RAFTER mix 133 LED M940 50° SwitchDim recessed black+white37955-M940-WW-SW-12
RAFTER mix 133 LED M940 50° SwitchDim recessed white37955-M940-WW-SW-13
RAFTER mix 136 LED M927 37° recessed black37956-M927-FB-00-12
RAFTER mix 136 LED M927 37° recessed white+black37956-M927-FB-00-13
RAFTER mix 136 LED M927 37° DALI recessed black37956-M927-FB-DA-12
RAFTER mix 136 LED M927 37° DALI recessed white+black37956-M927-FB-DA-13
RAFTER mix 136 LED M927 37° SwitchDim recessed black37956-M927-FB-SW-12
RAFTER mix 136 LED M927 37° SwitchDim recessed white+black37956-M927-FB-SW-13
RAFTER mix 136 LED M927 37° recessed black+white37956-M927-FW-00-12
RAFTER mix 136 LED M927 37° recessed white37956-M927-FW-00-13
RAFTER mix 136 LED M927 37° DALI recessed black+white37956-M927-FW-DA-12
RAFTER mix 136 LED M927 37° DALI recessed white37956-M927-FW-DA-13
RAFTER mix 136 LED M927 37° SwitchDim recessed black+white37956-M927-FW-SW-12
RAFTER mix 136 LED M927 37° SwitchDim recessed white37956-M927-FW-SW-13
RAFTER mix 136 LED M927 50° recessed black37956-M927-WB-00-12
RAFTER mix 136 LED M927 50° recessed white+black37956-M927-WB-00-13
RAFTER mix 136 LED M927 50° DALI recessed black37956-M927-WB-DA-12
RAFTER mix 136 LED M927 50° DALI recessed white+black37956-M927-WB-DA-13
RAFTER mix 136 LED M927 50° SwitchDim recessed black37956-M927-WB-SW-12
RAFTER mix 136 LED M927 50° SwitchDim recessed white+black37956-M927-WB-SW-13
RAFTER mix 136 LED M927 50° recessed black+white37956-M927-WW-00-12
RAFTER mix 136 LED M927 50° recessed white37956-M927-WW-00-13
RAFTER mix 136 LED M927 50° DALI recessed black+white37956-M927-WW-DA-12
RAFTER mix 136 LED M927 50° DALI recessed white37956-M927-WW-DA-13
RAFTER mix 136 LED M927 50° SwitchDim recessed black+white37956-M927-WW-SW-12
RAFTER mix 136 LED M927 50° SwitchDim recessed white37956-M927-WW-SW-13
RAFTER mix 136 LED M930 37° recessed black37956-M930-FB-00-12
RAFTER mix 136 LED M930 37° recessed white+black37956-M930-FB-00-13
RAFTER mix 136 LED M930 37° DALI recessed black37956-M930-FB-DA-12
RAFTER mix 136 LED M930 37° DALI recessed white+black37956-M930-FB-DA-13
RAFTER mix 136 LED M930 37° SwitchDim recessed black37956-M930-FB-SW-12
RAFTER mix 136 LED M930 37° SwitchDim recessed white+black37956-M930-FB-SW-13
RAFTER mix 136 LED M930 37° recessed black+white37956-M930-FW-00-12
RAFTER mix 136 LED M930 37° recessed white37956-M930-FW-00-13
RAFTER mix 136 LED M930 37° DALI recessed black+white37956-M930-FW-DA-12
RAFTER mix 136 LED M930 37° DALI recessed white37956-M930-FW-DA-13
RAFTER mix 136 LED M930 37° SwitchDim recessed black+white37956-M930-FW-SW-12
RAFTER mix 136 LED M930 37° SwitchDim recessed white37956-M930-FW-SW-13
RAFTER mix 136 LED M930 50° recessed black37956-M930-WB-00-12
RAFTER mix 136 LED M930 50° recessed white+black37956-M930-WB-00-13
RAFTER mix 136 LED M930 50° DALI recessed black37956-M930-WB-DA-12
RAFTER mix 136 LED M930 50° DALI recessed white+black37956-M930-WB-DA-13
RAFTER mix 136 LED M930 50° SwitchDim recessed black37956-M930-WB-SW-12
RAFTER mix 136 LED M930 50° SwitchDim recessed white+black37956-M930-WB-SW-13
RAFTER mix 136 LED M930 50° recessed black+white37956-M930-WW-00-12
RAFTER mix 136 LED M930 50° recessed white37956-M930-WW-00-13
RAFTER mix 136 LED M930 50° DALI recessed black+white37956-M930-WW-DA-12
RAFTER mix 136 LED M930 50° DALI recessed white37956-M930-WW-DA-13
RAFTER mix 136 LED M930 50° SwitchDim recessed black+white37956-M930-WW-SW-12
RAFTER mix 136 LED M930 50° SwitchDim recessed white37956-M930-WW-SW-13
RAFTER mix 136 LED M940 37° recessed black37956-M940-FB-00-12
RAFTER mix 136 LED M940 37° recessed white+black37956-M940-FB-00-13
RAFTER mix 136 LED M940 37° DALI recessed black37956-M940-FB-DA-12
RAFTER mix 136 LED M940 37° DALI recessed white+black37956-M940-FB-DA-13
RAFTER mix 136 LED M940 37° SwitchDim recessed black37956-M940-FB-SW-12
RAFTER mix 136 LED M940 37° SwitchDim recessed white+black37956-M940-FB-SW-13
RAFTER mix 136 LED M940 37° recessed black+white37956-M940-FW-00-12
RAFTER mix 136 LED M940 37° recessed white37956-M940-FW-00-13
RAFTER mix 136 LED M940 37° DALI recessed black+white37956-M940-FW-DA-12
RAFTER mix 136 LED M940 37° DALI recessed white37956-M940-FW-DA-13
RAFTER mix 136 LED M940 37° SwitchDim recessed black+white37956-M940-FW-SW-12
RAFTER mix 136 LED M940 37° SwitchDim recessed white37956-M940-FW-SW-13
RAFTER mix 136 LED M940 50° recessed black37956-M940-WB-00-12
RAFTER mix 136 LED M940 50° recessed white+black37956-M940-WB-00-13
RAFTER mix 136 LED M940 50° DALI recessed black37956-M940-WB-DA-12
RAFTER mix 136 LED M940 50° DALI recessed white+black37956-M940-WB-DA-13
RAFTER mix 136 LED M940 50° SwitchDim recessed black37956-M940-WB-SW-12
RAFTER mix 136 LED M940 50° SwitchDim recessed white+black37956-M940-WB-SW-13
RAFTER mix 136 LED M940 50° recessed black+white37956-M940-WW-00-12
RAFTER mix 136 LED M940 50° recessed white37956-M940-WW-00-13
RAFTER mix 136 LED M940 50° DALI recessed black+white37956-M940-WW-DA-12
RAFTER mix 136 LED M940 50° DALI recessed white37956-M940-WW-DA-13
RAFTER mix 136 LED M940 50° SwitchDim recessed black+white37956-M940-WW-SW-12
RAFTER mix 136 LED M940 50° SwitchDim recessed white37956-M940-WW-SW-13
AVAILABLE LENGTHS
565 mm
936 mm
1335 mm
1364 mm

photometric curves:

  • 37°
  • 50°
